SLOs and Load Test Analysis Error Issue

In this lab we walk through how to create SLOs in Dynatrace that can be used in your Performance Testing and we will also troubleshoot why a Availability/Error SLO failed.

The Google’s SRE Handbook mostly focuses on the production use case for SLIs/SLOs, Dynatrace is “Shifting-Left” this approach and using SLIs/SLOs

While an SLI is just a metric, an SLO just a threshold you expect your SLI to be in and SLA is just the business contract on top of an SLO. It’s great that this discipline and ideas have got a lot of attention lately.

“The earlier in the lifecycle we ensure SLIs meet their SLOs the better it will to ensure these service levels in production”.

Configuration

  1. Kick off Keptn Orders Build
  2. Create Availability/Error SLOs
  3. Run Load Test
  4. Examine Performance Test Dashboard with Transaction Steps & SLOs
  5. Load Test Availability/Error Analysis

Kick off Keptn Orders 2 Build

Open Jenkins.

Click on 01_deploy_order_application pipeline

Now we are going to push the order version 2.0.0.

Select Build with parameters

In the orderRelease dropdown select 2.0.0

In the DEPLOY_TO field, change the dropdown box to order

Next, click the Build button.


Create Availability/Error SLOs

The Dynatrace Software Intelligence Platform delivers all the necessary Service-Level Indicators (SLIs) for defining your Service-Level Objectives (SLOs) and monitors the status and error budgets of those objectives. Whether you want to define an SLO for real user experience or for measuring your service availability, your Dynatrace monitoring environment already comes with the right tools for your Site Reliability Teams. You can get all the facts about the health of you critical business services with respect to Business and Service-Level Objectives (SLO), Service-Level Agreements (SLAs), and end-user experience.

Click SLOs from the Main Navigation menu.

Then Select the Add new SLO Button.

This will bring up the Add new SLO wizard screen.

Click on the Service-level availability button.

In the Name this service-level availability SLO section use this name: Availability - Catalog_Staging

Now we need to Define a filter by expanding the define a filter section.

Change the Timeframe Filter section to -30m

Copy and paste the below text into the Entity selector section:

mzName("Keptn: keptnorders staging"),type("SERVICE"),entityName("catalog")

Then click the Preview button.

Now we need to select Evaluate - if the SLO was setup properly we should see data in the graph.

The final step in creating this SLO is to click on the Create button.

After the Availability - Catalog_Staging has been created lets create two more SLOs for Customer and Order services.

Use the follow settings for the Order SLO:

Use the follow settings for the Customer SLO:

When complete, review the results.


Run Load Test

Now we will run one more load test to see the outcome for the SLO’s

Open Jenkins and click on 04-performancetest-qualitygate pipeline:

Select Build with parameters

We only need to validate the DeployomentURI section.

When done click the Build button which will start the Performance Test.


Examine Performance Test Dashboard with Transaction Steps & SLOs

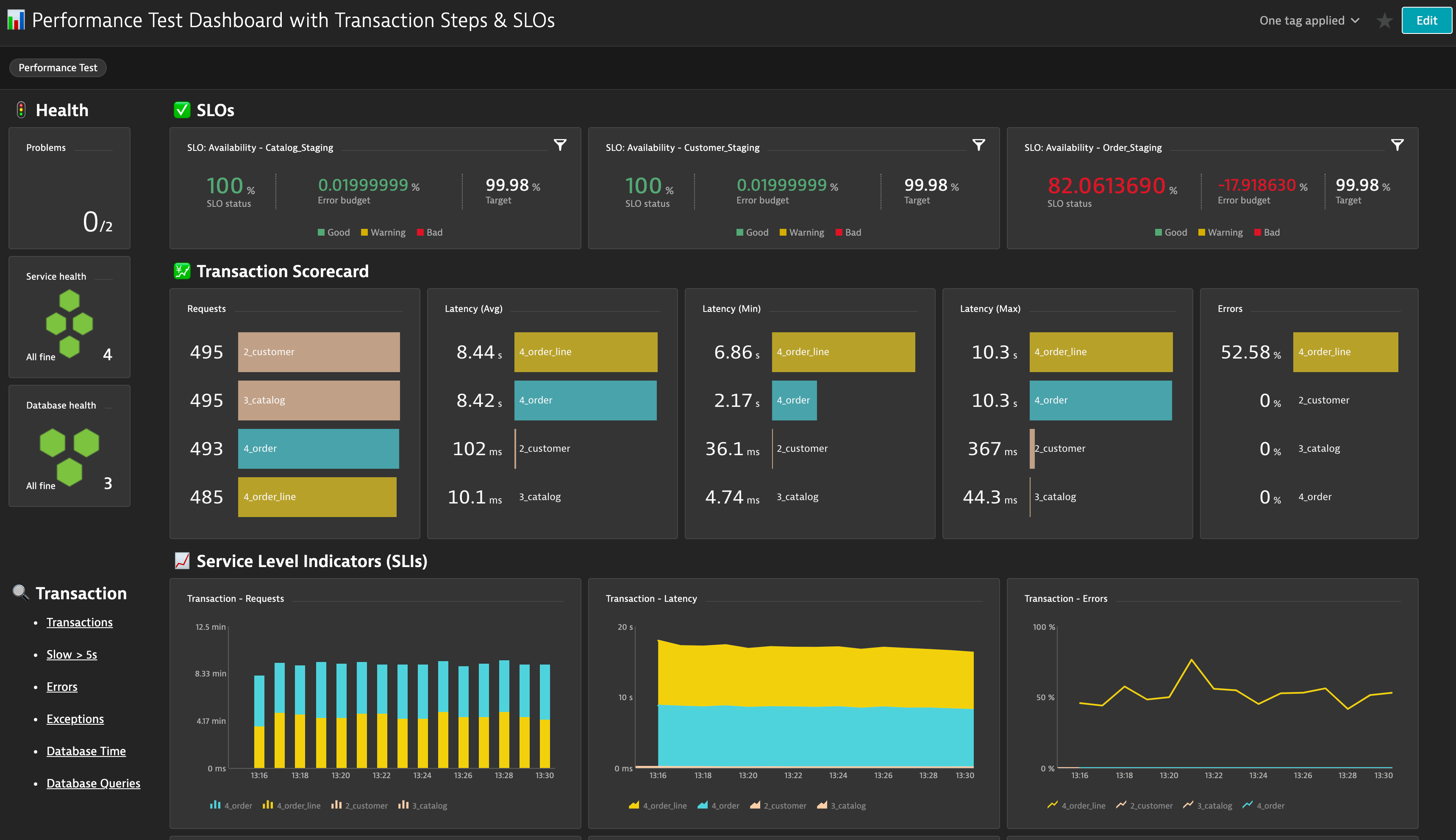

We have provided a Performance Test Dashboard with Transaction Steps & SLOs in your environment. This dashboard provides a complete overview for your Performance Test focusing on SLIs (Latency, Traffic, Errors & Saturation). Included in this dashboard is the following: Health Status, SLOs, Transaction Steps Scorecard, Services Overview, Database Overview, Process Overview and Hosts Overview. This dashboard also provides quick analysis links.

Click Dashboards from the Main Navigation menu.

Then select the Performance Test Dashboard with Transaction Steps & SLOs dashboard. We will need to edit the dashboard to use the SLO’s we created in the previous steps.

We should have these SLO’s in our list.

Click Edit

Select the SLO tile, then change the “select a SLO” from the drop down box. Select the appropriate SLO. You will do this for each SLO tile.

Now we can see if the SLO for the Order service is being met or not. In the next section we will show you why!


Load Test Availability/Error Analysis

Dynatrace uses a sophisticated AI causation engine, called Davis®, to automatically detect performance anomalies in your applications, services, and infrastructure. Dynatrace-detected problems are used to report and alert on abnormal situations, such as performance degradations, improper functionality, or lack of availability (i.e., problems represent anomalies in baseline system performance).

For Performance Testing the Dynatrace AI might not generate a Problems unless you are doing continuous performance testing. You can setup custom alerts with static thresholds.

If a Dynatrace Problem has generated a Problem during your Performance Test that is always a best place to start.

From the Problem card we will focus on the Root cause Dynatrace has provided around the Failure rate increase. Click on the Analyze failure rate degradation button.

This will bring us to the Failure analysis screen. We can see HTTP 500 Errors were generated and by each transaction. To dig deeper you can drill-down to the Purepaths by clicking on the Purepaths icon at the top right of the screen.

This will bring us to the failed Purepaths. Click on a Purepath to see the trace details Dynatrace has captured around the failure.

This will bring us to the Purepath trace details screen. Click on the second node which is the order service in the trace tree. Then click on Errors in the table. Then click on the down arrow under the Details of the Exception.

When looking at the Exception details we can see the in Message details the exact error message which caused the failure rate for the Performance test. A good best practice is to copy the Dynatrace URL(s) for the screens you want to share in your analysis back to the Application team.

If a Dynatrace Problem wasn’t detected you can use out of the box workflows and custom dashboards. We will walk through using the Performance Test Dashboard with Transaction Steps & SLOs but also out of the box options as well.

Open the Performance Test Dashboard with Transaction Steps & SLOs dashboard.

Then click on the Errors link under Transaction on the left side of the dashboard.

This will bring us to Multidimensional analysis that is showing failed request counts split by the TSN request attribute. Note, you can also create your own Multidimensional analysis views and save them by going to the Diagnostic tools–>Top web requests configure desired settings.

In the table provides the details for the failed Transaction Steps. On the far left in the table details click you will see the Actions, click the … which will bring up the Analyze Menu.

Click on Details of failures.

This will bring us to the Failure analysis screen. We can see HTTP 500 Errors were generated and also see exactly which transactions were impacted. To dig deeper you can drill-down to the Purepaths by click on the Purepaths icon at the top right of the screen.

This will bring us to the failed Purepaths. Click on a Purepath to see the trace details Dynatrace has captured around the failure.

This will bring us to the Purepath trace details screen. Click on the second node which is the order service in the trace tree. Then click on Errors in the table. Then click on the down arrow under the Details of the Exception.

When looking at the Exception details we can see the in Message details that has the exact error message which caused the failure rate for the Performance test. A good best practice is to copy the Dynatrace URL(s) of the screens you want to share with your analysis back to the Application team.

Last, we will cover troubleshooting via an out of the box workflow for a key service that has been impacted during the Performance Test.

Click “Transactions and services” from the Main Navigation menu.

Then click on the Order service in the Services screen.

This will bring up the Order Service overview screen. Under Dynamic web requests section (charts) click the Failure rate section.

This will bring up the Order Service Failure rate screen. Click the View details of failures button.

This will bring us to the Failure analysis screen. We can see all the failures, which transactions were impacted and Reason for failed requests including the Stack Trace Exception message. To dig deeper you can drill-down to the Purepaths by click on the Purepaths icon at the top right of the screen.
